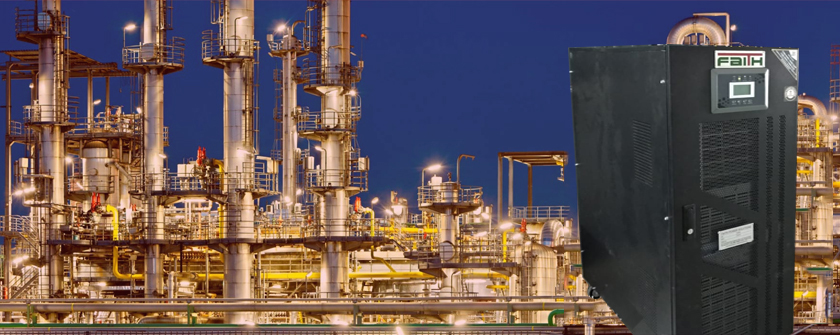

ONLINE UPS
Commercial UPS
Product Description:
- The online UPS Systems have much more complex designs systems, while the price, weight, and volume are higher. The inverter of an online UPS supplies continuous power to the critical load. Under conditions of overload or loads with high inrush currents which is beyond the capacity of the inverter, the static bypass switch provides mains power to the load. With built-in isolation transformer UPS are also available. These kind UPS prevent the load from surge voltage, transient voltage, noise, harmonics and brownouts.
Technical Specification for Online UPS
| Input Voltage Range | 1KVA to 30KVA | |
|---|---|---|
| Input | Nominal Voltage | 380/220, 400/230, 415/240, Vac (3 Phase, 4 - Wire plus Ground) |
| Voltage Range | ± 20% | |
| Current Harmonic Distortion | < 3% (with optional rectifier or filter, full load) | |
| Frequency | 50 or 60 Hz ± 5% | |
| Output | Voltage | 380/220, 400/230, 415/240, Vac (3 Phase, 4 - Wire Plus Ground) |
| 220, 230, 240, Vac (1 Phase, 2 - Wire Plus Ground)* | ||
| Voltage Harmonic Distortion | ≤ 3% (linear load) | |
| Voltage Regulation | ± 1% (Static) | |
| Frequency | 50 or 60 Hz 0.5% | |
| Frequency Regulation | ± 0.01% (interior oscillation); ± 1% (Synchronized) | |
| Overload Capability | ≤ 110%; 60 minutes; 110-125%; 10 minutes; 126-150%; 1 minute | |
| Waveform | Pure Sine Wave | |
| Crest Factor | ||
| Output Voltage Dynamic Regulation | ± 5% (For 0 ~ 100% Load Variation) | |
| Voltage Symmetry with 100% unbalanced load | ± 1% | |
| Batteries | Type | SMF |
| Backup Time | As per Offer | |
| Rated Battery Voltage | 36 - 360Vdc | |
| Rectifier Output | Ripple | < 1% |
| Inverter Output | Static Stability | ± 1% |
| Dynamic Stability | ± 5% in 5ms | |
| Inverter Efficiency | 93% | |
| Operating Temperature | 0° to 40°C | |
| Relative Humidity | 95% (Non Condensing) | |
| Noise | 53/60db at 1 meter | |
| Protection Rating | 1P 20 | |
| Efficiency | 92% | |
| Compliance | Safety EN 62040-1 EMC EN 62040-2 | |
| Protection Rating | Output short circuit | |
| Battery Low Tripping | ||
| D.C. Over Voltage & main over voltage Battery & Inverter by HRC Fuse link & MCB Input MCB/Output MCB Output over load Output Over Voltage | ||
| Indications | Status Indication for the following: Main ON, Battery ON, Inverter ON, Battery Low, Over Voltage, Inverter Over load | |
| Alarm with Indications | Battery Low | |
| Metering | D.C. Volts/Output A.C. Volts, Input AC Volts, Frequency. LCD Display | |
| By-pass | Manual By-pass provided (For Maintenance) | |
